Acquaintance with Dowel Rod Cutter DRC
Have you ever thought about where you can apply round
dowel in carpentry or joinery? The round dowels in our
opinion, unfortunately, are not so widely used. And it seems
to be because we don't have this very dowels at the right
time in the necessary quantity and quality, of the required
diameter in accordance with the size of the available drill bit
for reliable gluing .
Our precision tool Dowel Rod Cutter DRC will give the
carpenter the ability to get the dowels on the fly! The
problem of lack of dowels will be successfully solved, and we
heartily congratulate you! A professional or home carpenter
will choose a suitable drill bit and then without spending
precious time will make a round dowel from a square or
rectangular blank.
You can use all wood species as a raw material.
Preferred wood: beech, birch, hicory, mahogany, maple.
Fragile species: oak, ash a little less suits to. Fibrous,
viscous and soft woods - spruce, poplar suits even less, but
DRCs will easily cope even with these wood species.
Therefore, it was not by accident that we gave our popular Youtube
video a loud title:
A dowel milling machine is no longer needed!
For the best acquaintance with Dowel Rod Cutter DRC please, join our
Vkontakte russian community "Круглопалочный станок больше не
нужен", download the User's Manual and read it carefully:

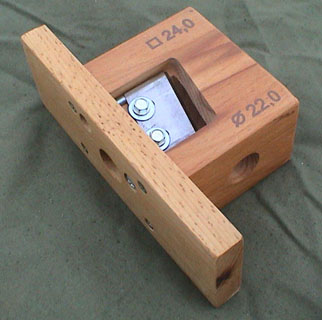

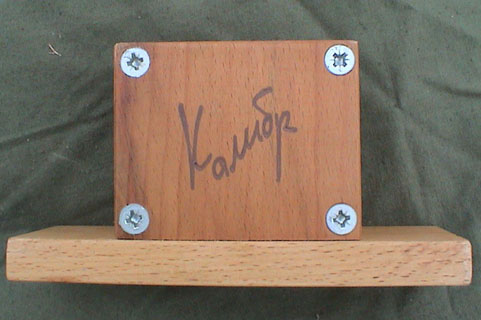

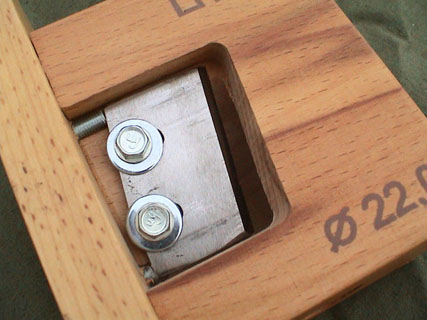

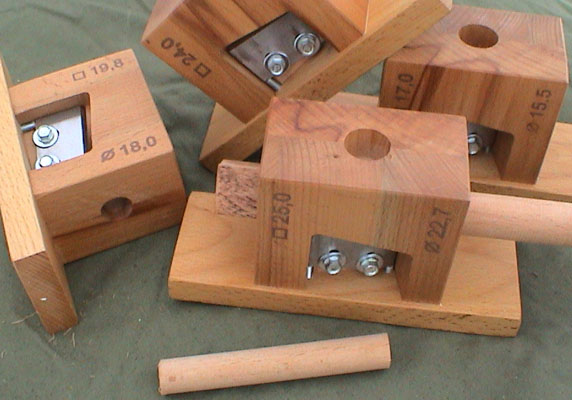

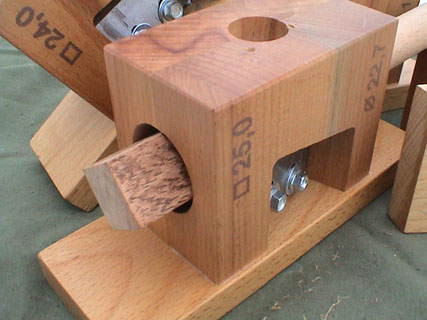

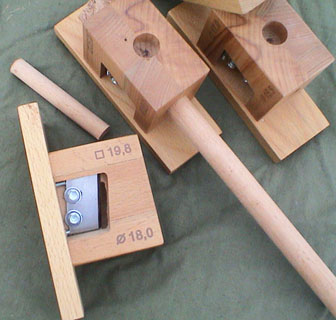

Dowel Rod Cutter DRC consist of a wooden body with a channel of

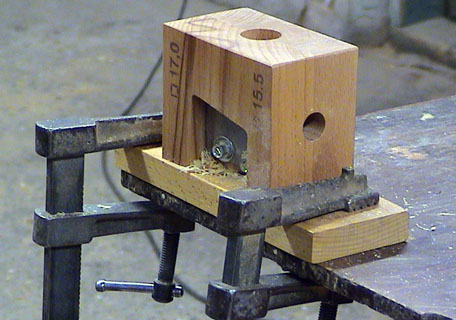

complex shape, a blade with adjustment, a paw for attachment to the
workbench and two supplied handles, which you can easily install on the
glue into the holes if necessary.
Please, contact us by e-mail to make sure the availability of a particular diameter. Ask any questions about DRC,
we are always happy to answer!

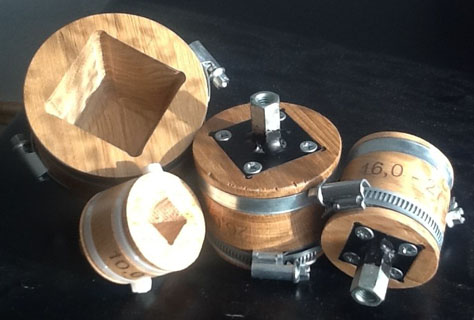

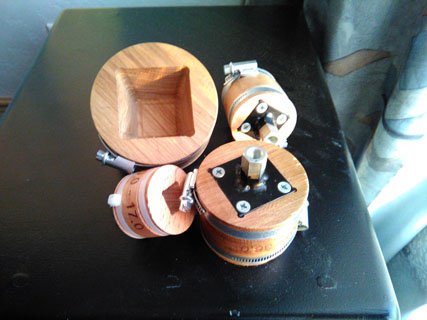

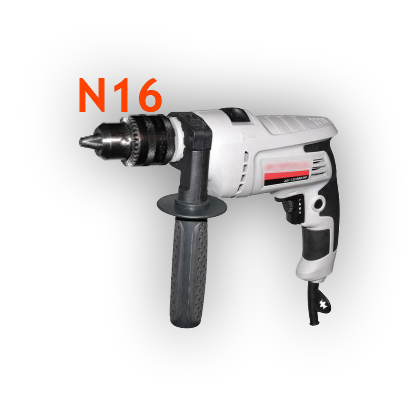

Y- adapters for electric drill
We produce Y-adapters for quick fixing of blanks without a wrench or a
key in a 16 mm chuck of electric drill. Y-adapters will greatly help you to
adjust your DRC after sharpening the blade. Below are the sizes and
prices of Y-adapters:
**When buying a Y-adapter along with the DRC, let us know about it by
e-mail. This is a good case to save money! We will send you a PayPal
invoice with a discounted price and you'll save the amount marked with
two asterisks in the table above!
We wish you successful mastering the advanced tool Dowel Rod Cutter DRC!

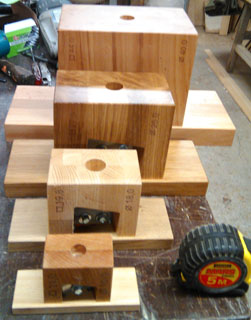

| 1-st size | 2-nd size | 3-rd size | |
| Including diameters, mm | 10.0* up to 14.0 | 15.0 up to 22.0 | 23.0 up to 32.0 |
| Dimensions L x W x H, mm |
122 Х 43 Х 65 | 186 Х 66 Х 98 | 267 Х 94 Х 140 |
| Weight, g, approx. | 180 | 610 | 1750 |
| Price | $34.50 | $55.70 | $81.40 |
| Shipping | $6.60 | $18.30 | $32.90 |
| Square, mm | Price | Shipping |
| 10.0 - 17.0 | $11.50 | $4,00** |
| 16.0 - 27.0 | $17.20 | $6,60** |
| 26.0 - 38.0 | $22.70 | $10,00** |
Dowel rod cutter DRC
Thus, Dowel Rod Cutter DRC is a carousel single-knife mill cutter, but the
difference of the DRC is that it does not rotate - instead of it the
processing workpiece rotates. You can work with DRC at least in two
ways: using a lathe, or using an electric drill. The special shape of the
DRC's channel and the carefully selected angles of installation and
sharpening of the blade allow us to obtain tangible self-feeding of the
workpiece and you do not have to put much effort. In addition, our DRC
almost does not feel knotty and oblique blanks, and it will bring the
carpenter special pleasure. Based on many years of production and
experience with the use of DRC we assert that the wooden body is quite
strong and durable, and its operating life consists of thousands of
meters of dowel rods. In addition to the above, we especially note that
by giving up the dowel milling machine in favor of the DRC, you will save
expensive production areas! The diameter of the dowel, obtained with
the help of DRC, has a deviation of no more than +/- 0.05 mm. DRC is
the closest prototype of an ordinary sharpener for pencils, as well as a
sister of an old hand planer and DRC also like its brother needs very
sharp blade and careful adjusting to get the best results in productivity

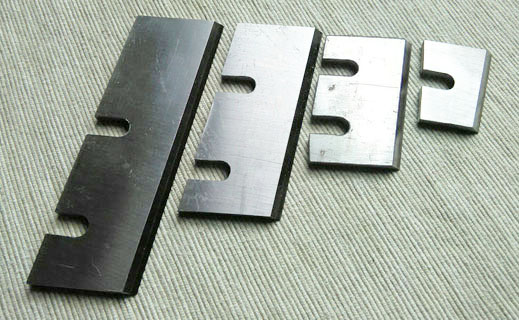

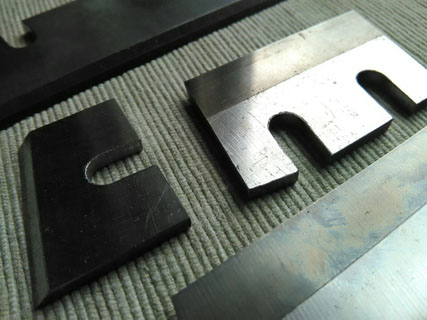

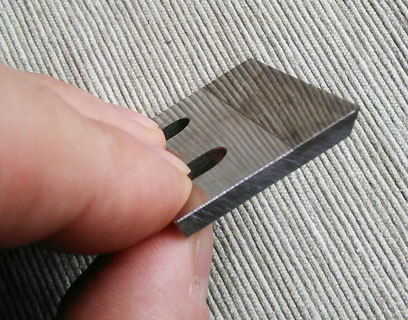

and quality of the surface. The blade of DRC is made of steel with a
cutting edge of hard alloy, so you are spared from everyday blade
sharpening. Easy blade adjustment allows you to quickly start the release
of parts after sharpening.

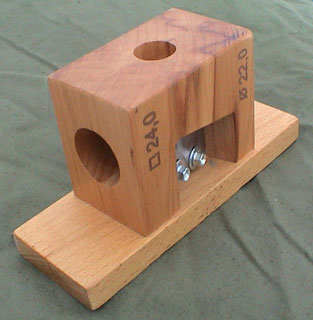

The Dowel Rod Cutter DRC is able to produce the dowel of only
one diameter. This diameter is indicated on the body of the DRC by
marking.
*We have DRC 5/16 "and DRC 11/32" inch diameters for archers for this
price.
Also, our DRC can be found on ebay.com by searching for Dowel Rod Cutter DRC
PayPal buttons includes the price of economy international airmail
shipping. If you want to get the parcel faster, or vice versa, want to
save more money on shipping, please contact us by email to consider
other ways of delivery.
